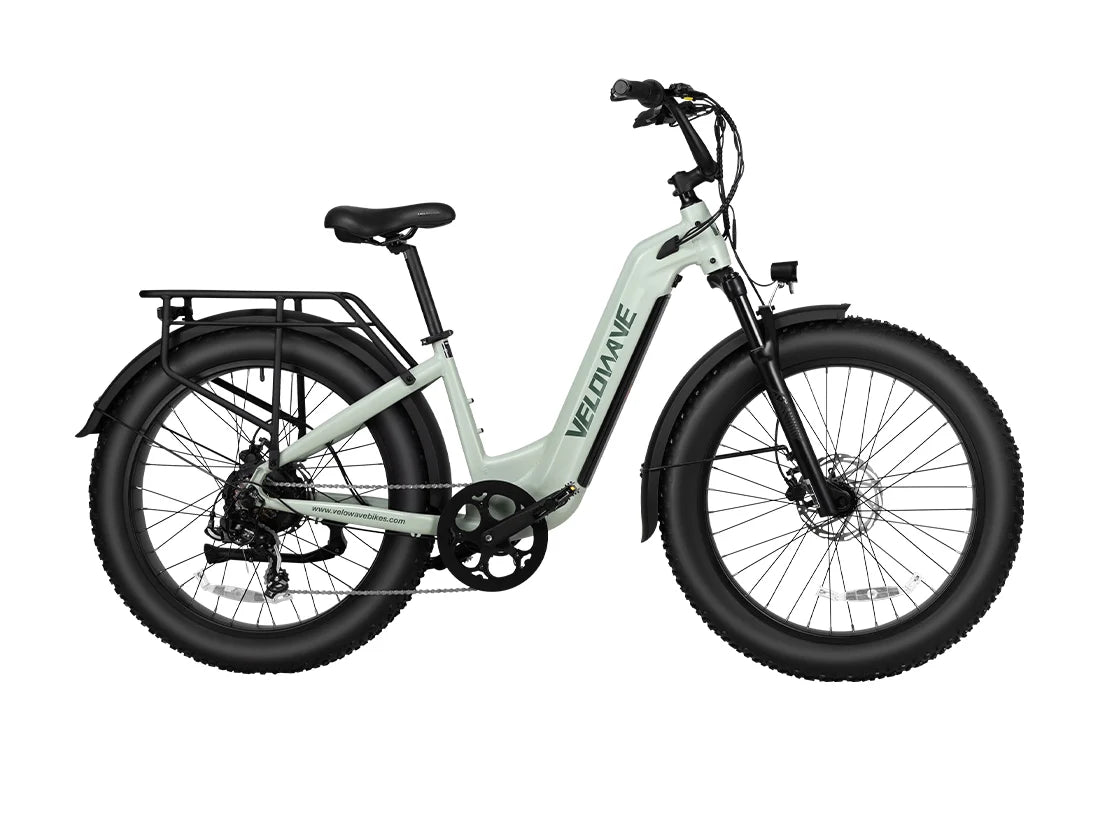

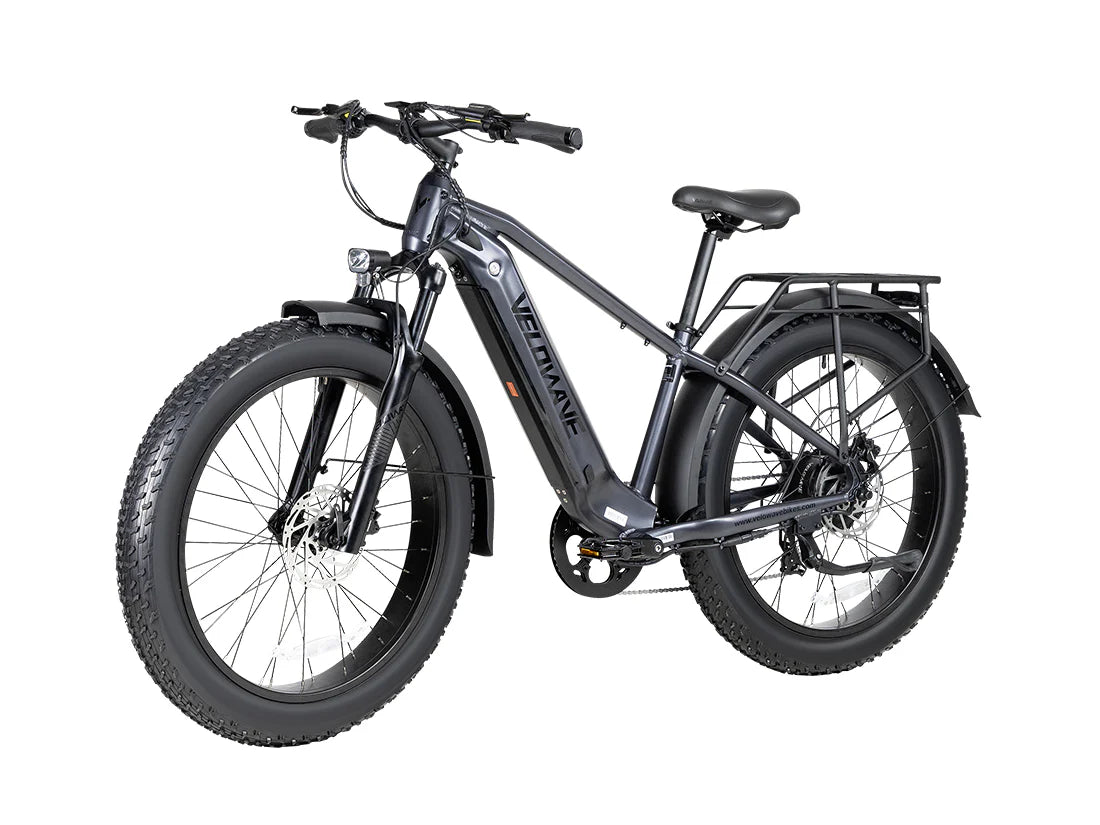

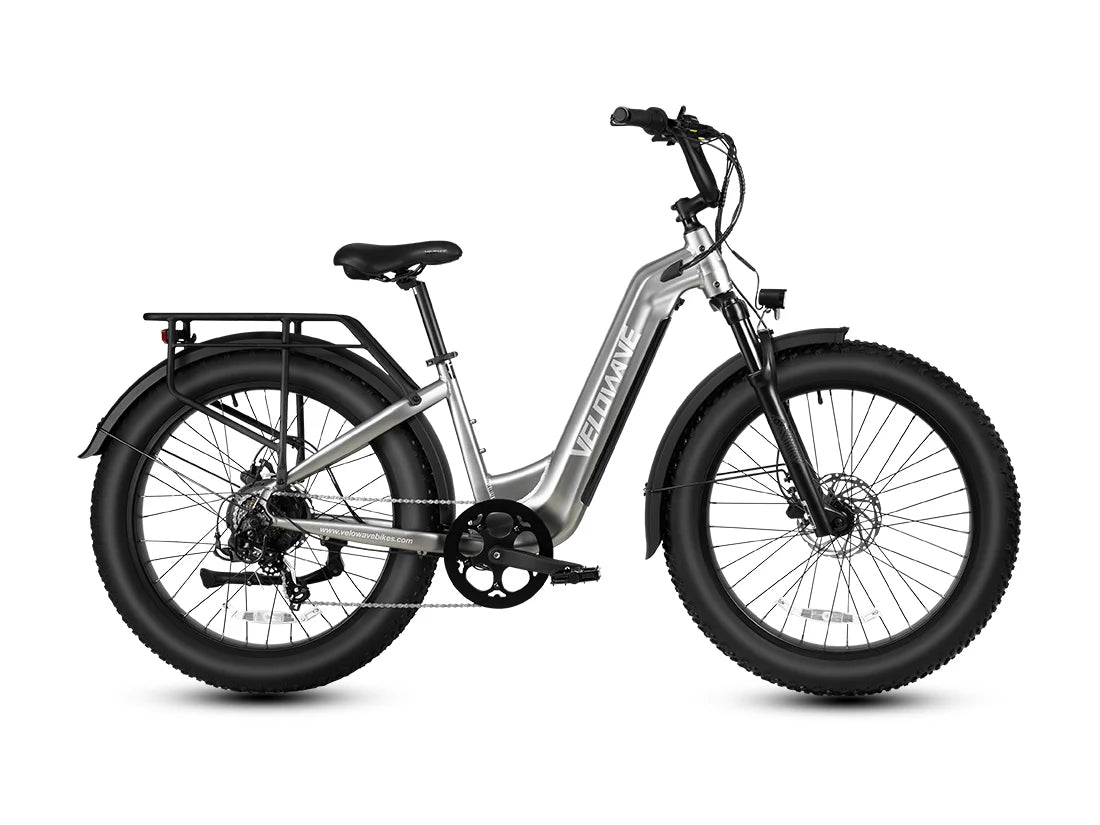

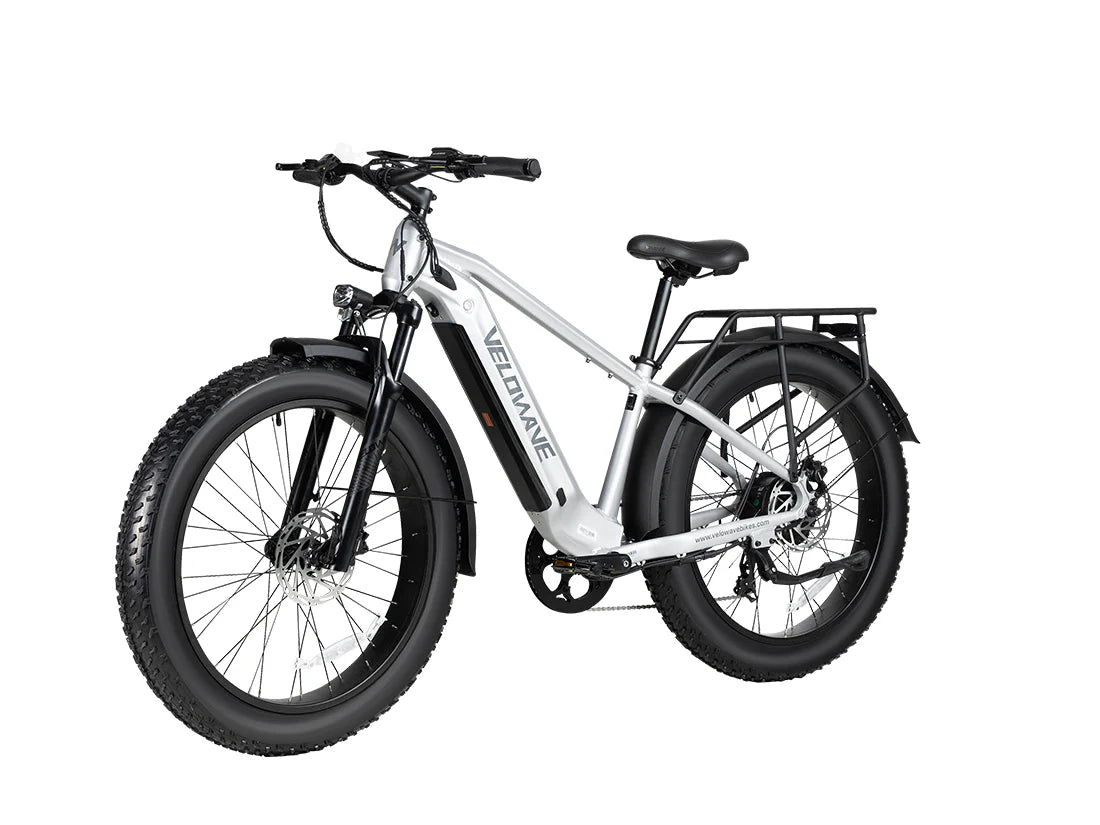

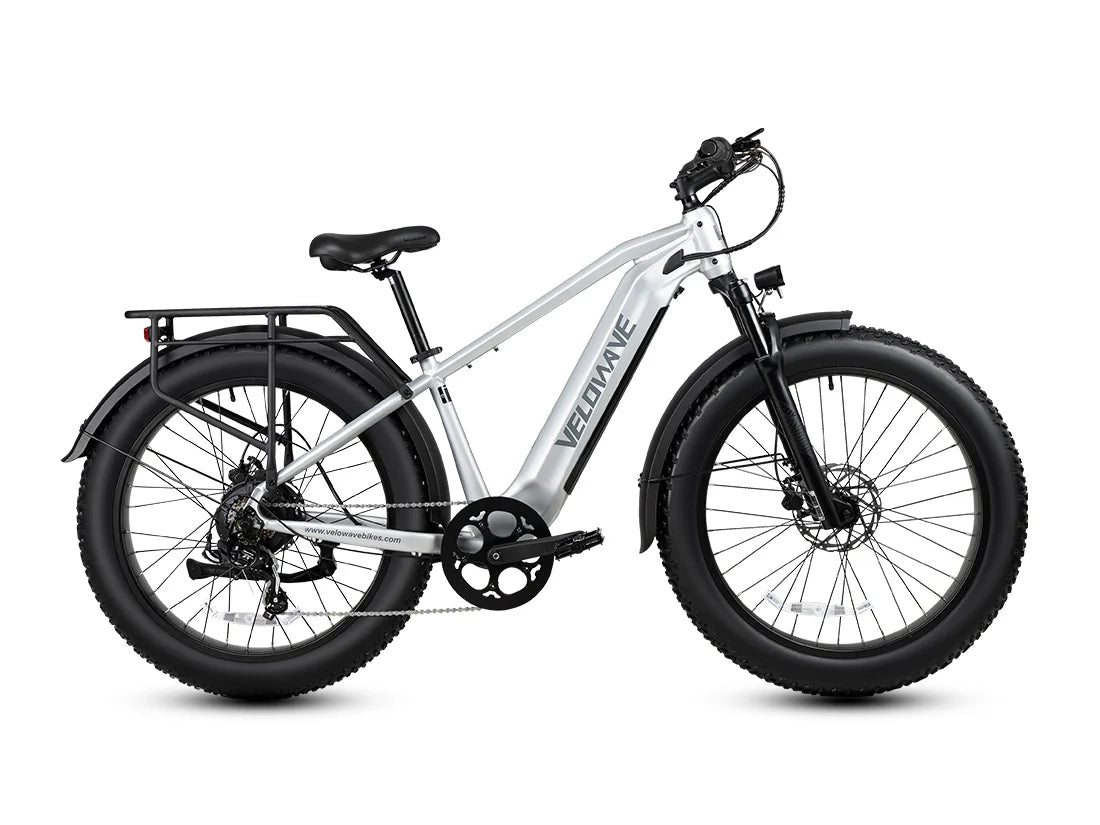

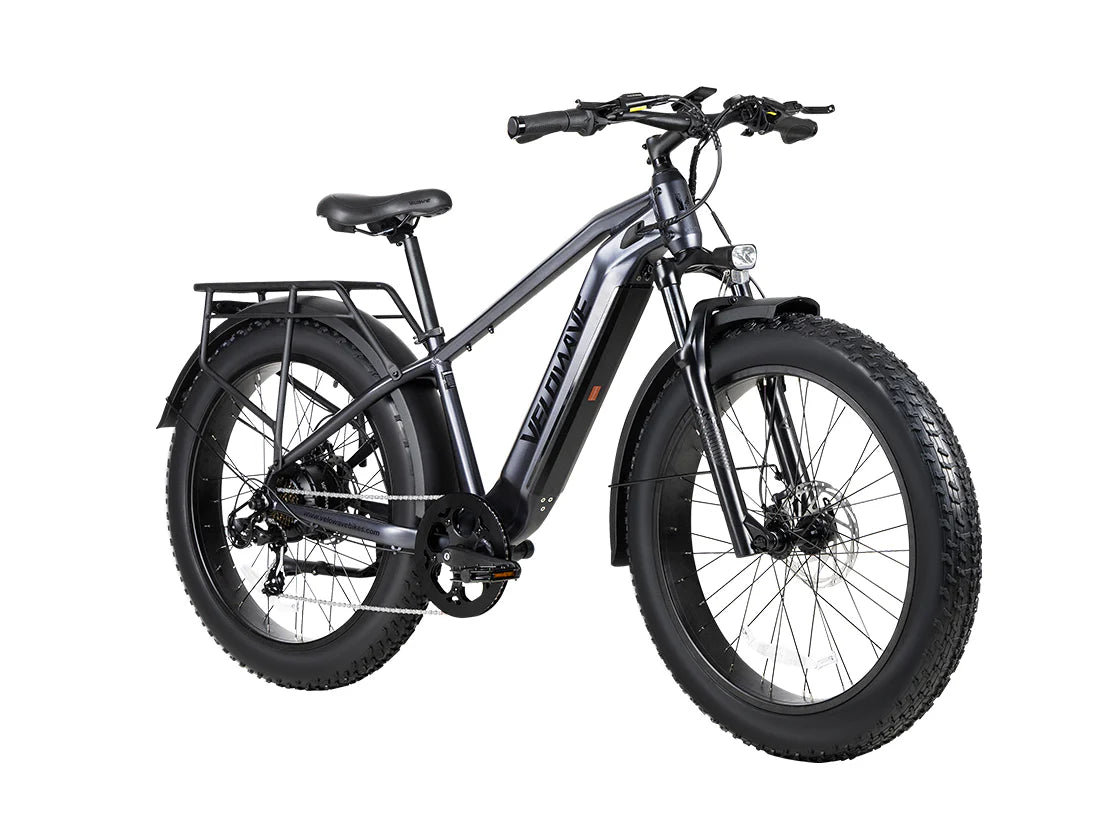

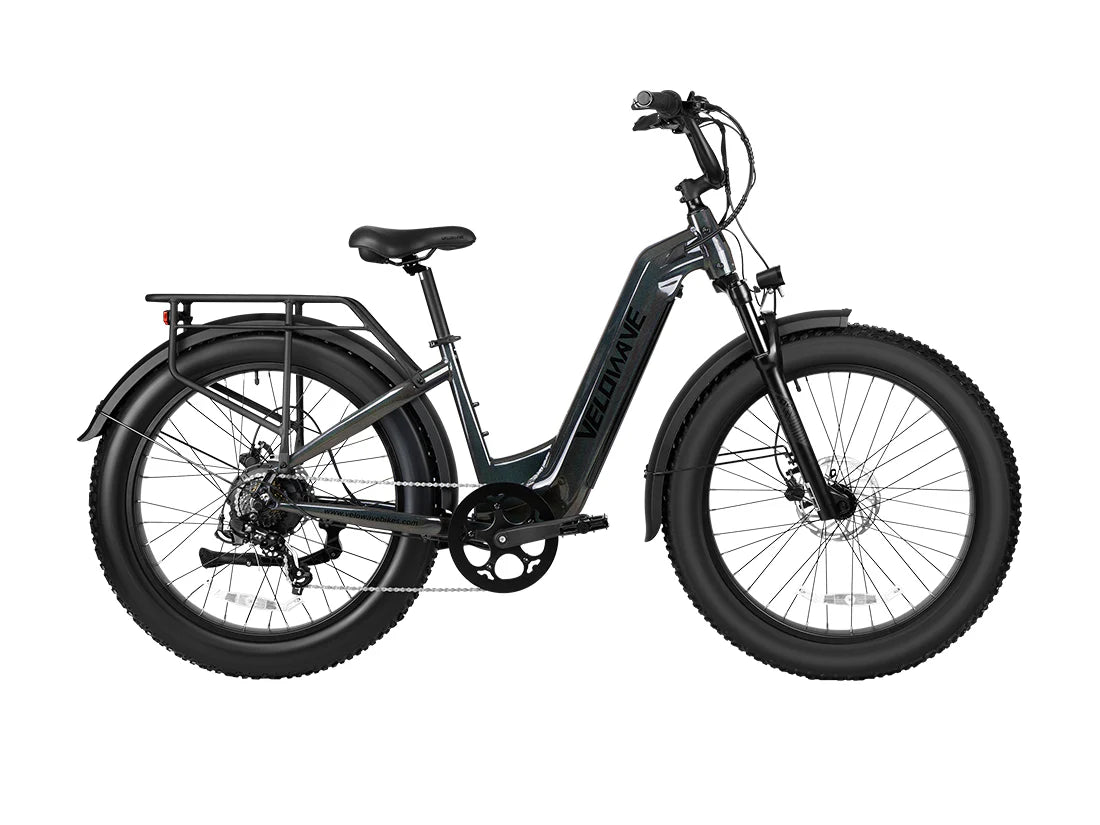

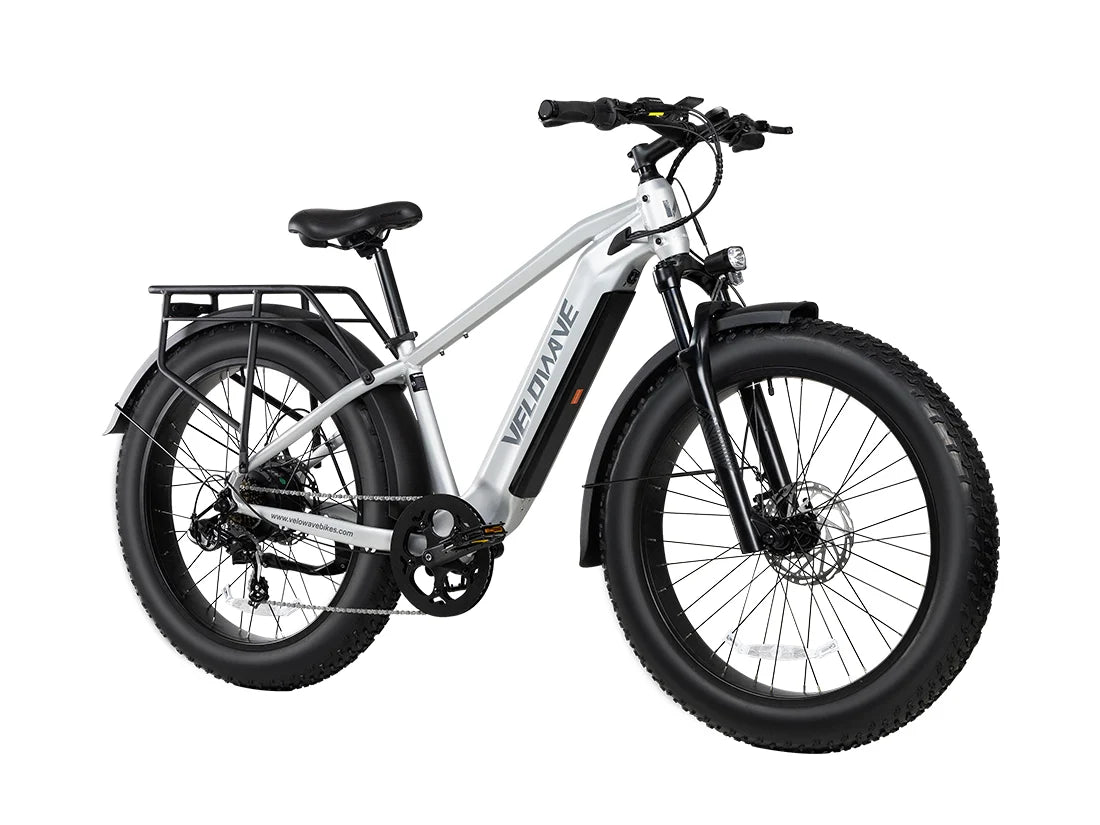

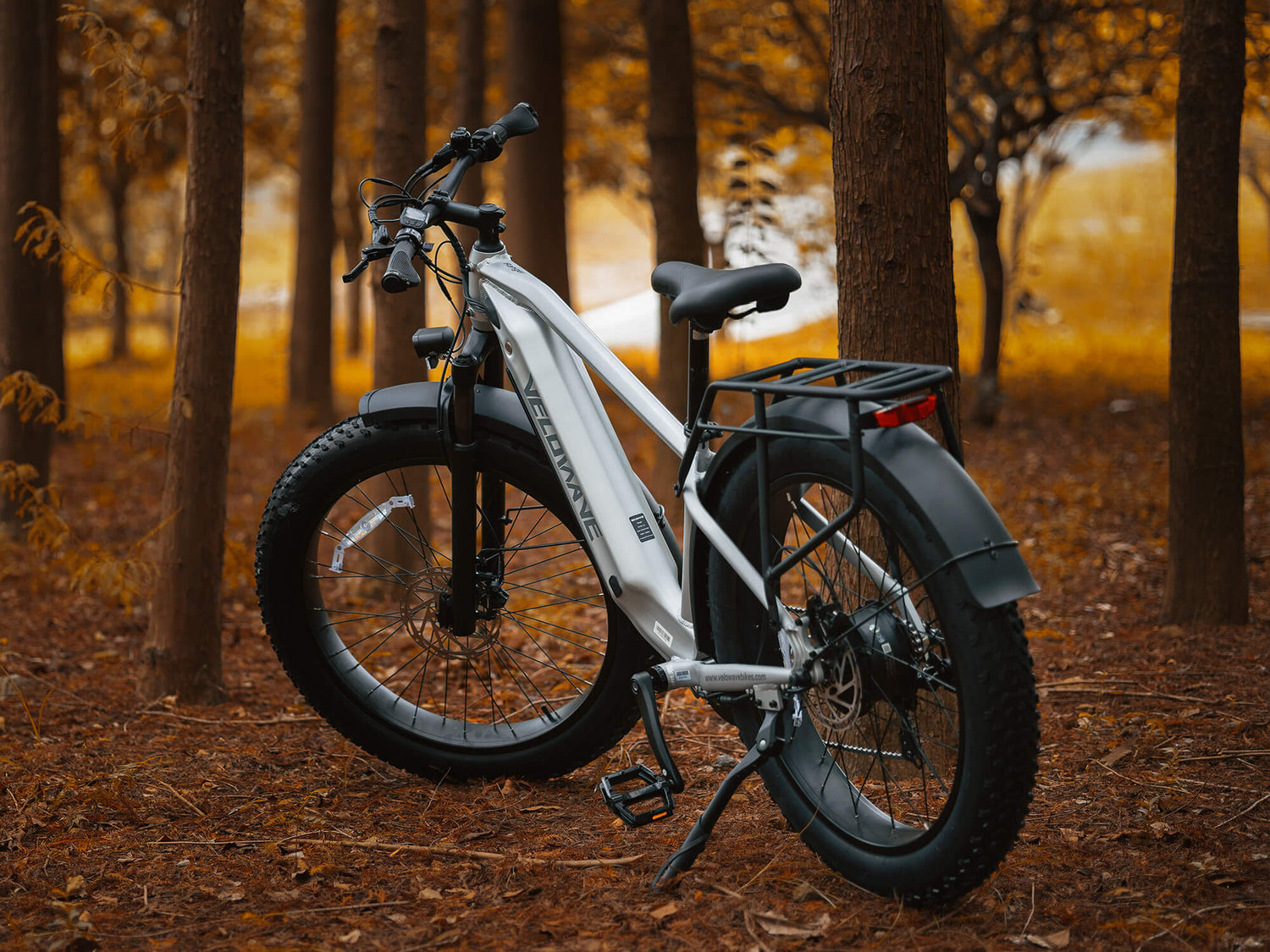

Velowave Ranger 3.0 Fat Tire All-Terrain Electric Bike
The Velowave Ranger 3.0 is a Class 3 fat tire electric bike designed for commuting, trail riding, and all-terrain adventures. Powered by a 750W rear hub motor with 1,000W peak output and 85 Nm of torque, it delivers responsive acceleration and confident performance across pavement, gravel, dirt, snow, and sand.
Equipped with a removable 48V 15Ah (720Wh) LG battery, the Ranger 3.0 provides a manufacturer-rated top speed of up to 28 MPH with pedal assist, 20 MPH using the throttle, and a manufacturer-rated average range of 65 miles, with up to 90 miles on PAS Level 1 under specified test conditions. Additional features include a torque sensor, hydraulic suspension fork with 60mm travel, hydraulic disc brakes, 26" × 4.0" Kenda fat tires, and a TFT smart color display for enhanced control and riding comfort.
Actual speed and range vary depending on rider weight, terrain, weather, battery condition, assist level, temperature, riding style, and other operating conditions. Manufacturer-rated maximum values.
Key Features

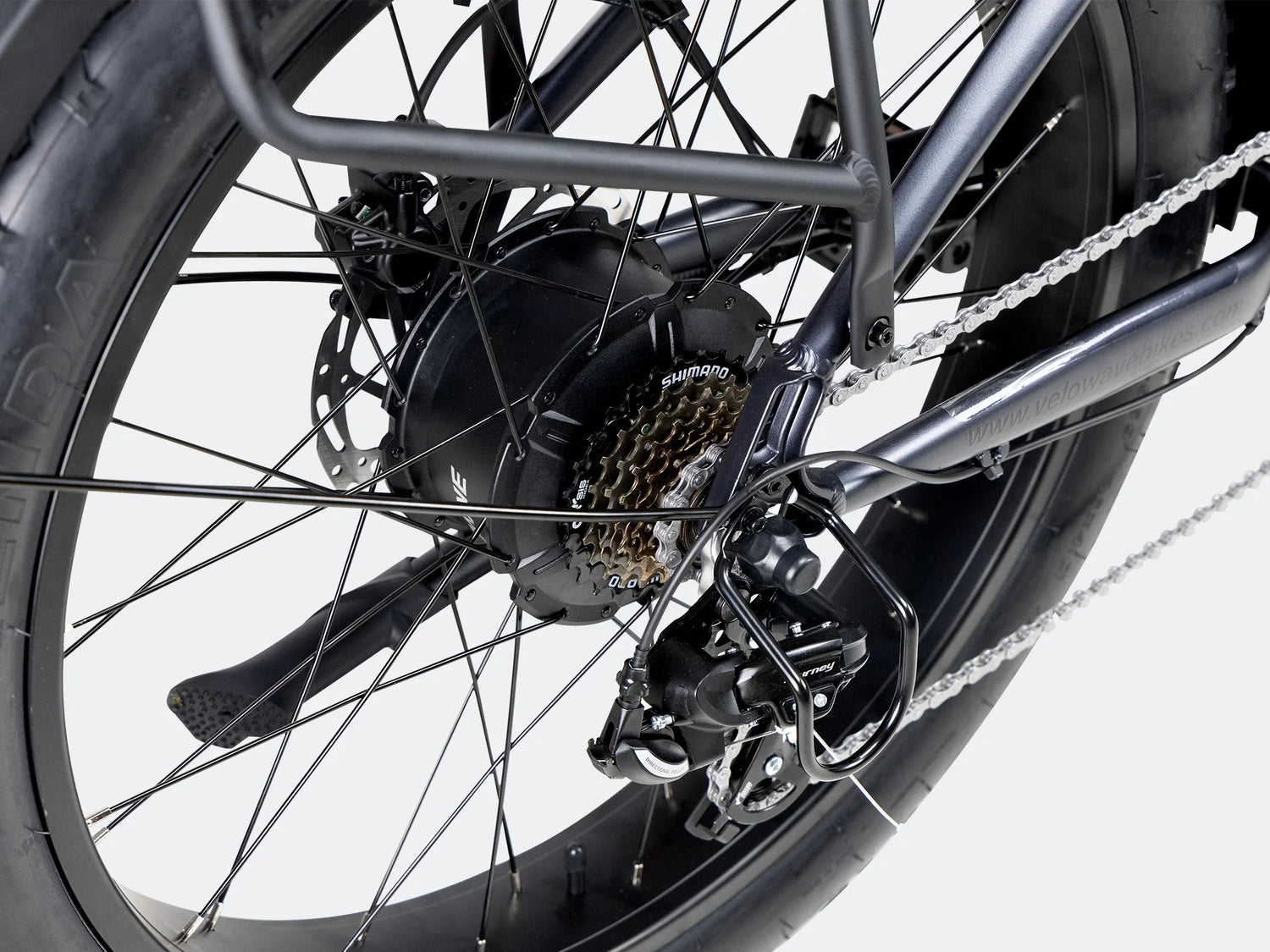

- 750W rear hub motor
- 1,000W peak motor output
- 85 Nm torque
- Up to 28 MPH pedal assist speed
- Up to 20 MPH throttle speed

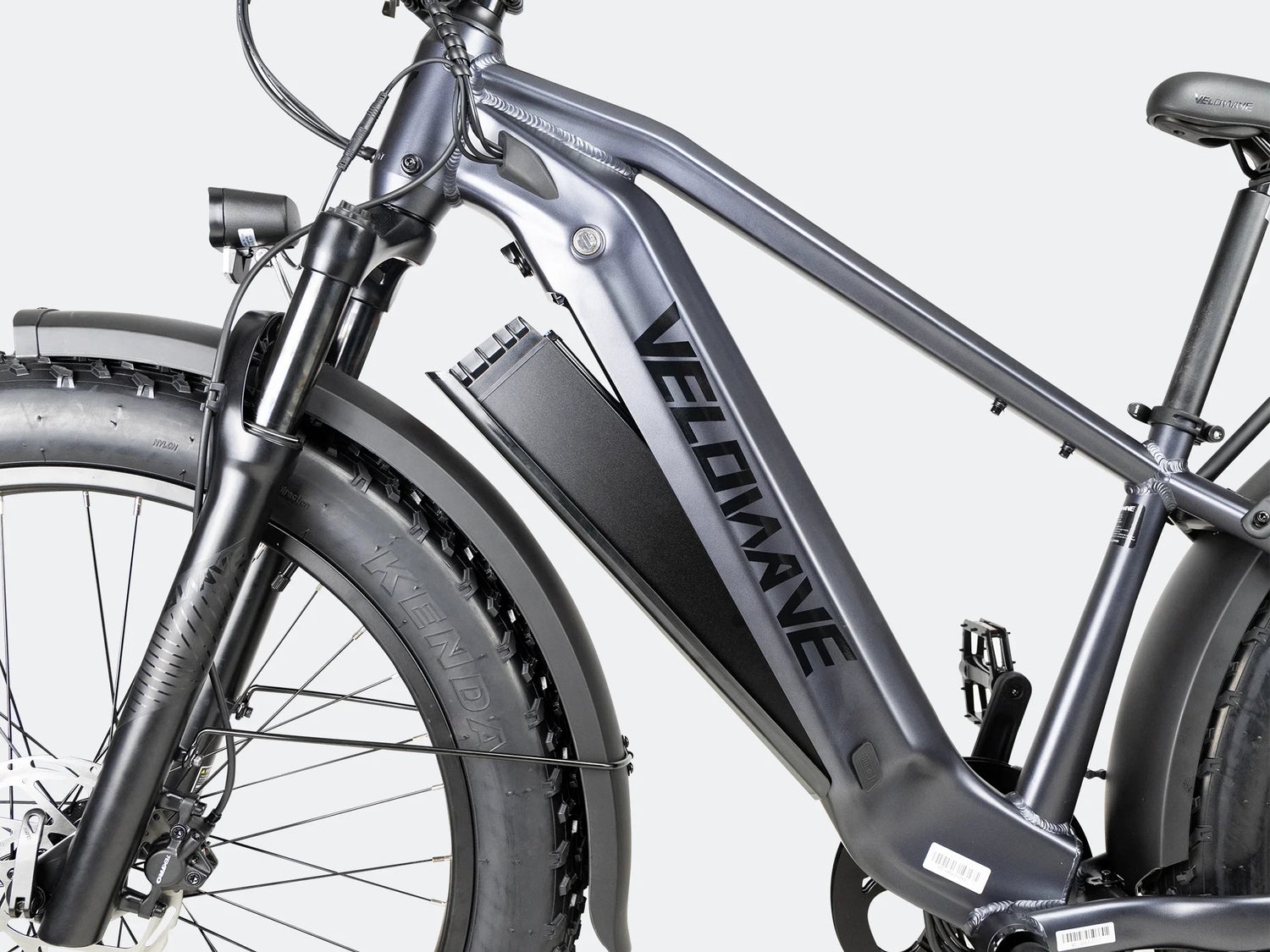

- Removable 48V 15Ah (720Wh) LG lithium-ion battery
- Average range up to 65 miles
- Up to 90 miles on PAS Level 1 (manufacturer-rated)
- Torque sensor for responsive pedal assistance

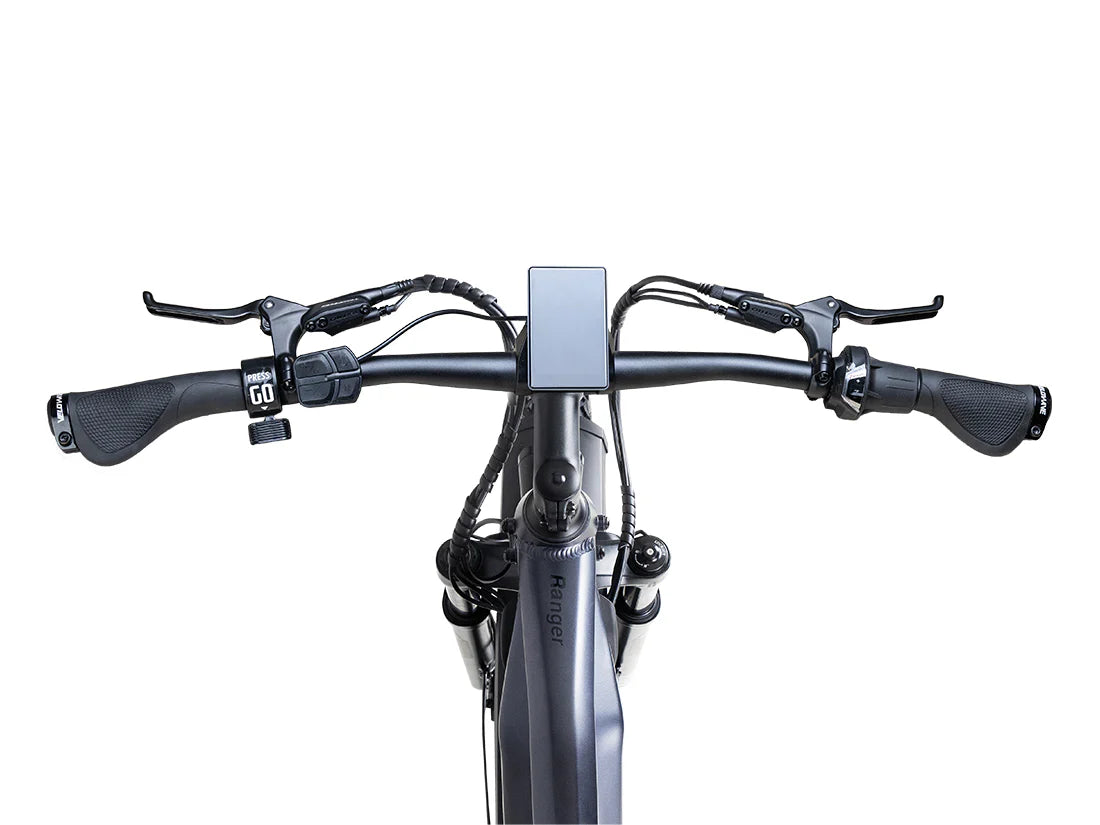

- TFT smart color display with backlight
- Hydraulic suspension fork with 60mm travel and lockout
- Hydraulic disc brakes with 180mm rotors and power cut-off
- Shimano 7-speed drivetrain
- 26" × 4.0" Kenda fat tires
- Integrated aluminum rear rack
- Front LED headlight
- Rear brake light
- Ergonomic comfort grips
Specifications
| Specification |
Details |
| Brand |
Velowave |
| Model |
Ranger 3.0 |
| Product Type |
Fat Tire Electric Bike |
| Class |
Class 3 |
| Motor |
750W Rear Hub Motor |
| Nominal Power |
750W |
| Peak Power |
1,000W |
| Torque |
85 Nm |
| Battery |
48V 15Ah (720Wh) Removable Lithium-ion Battery with LG Cells |
| Top Speed |
Up to 28 MPH (Pedal Assist); 20 MPH (Throttle) |
| Range |
Avg. 65 Miles PAS; Up to 90 Miles PAS Level 1; Approx. 30 Miles Throttle |
| Sensor |
Torque Sensor |
| Pedal Assist |
5 Levels |
| Throttle |
Throttle on Demand |
| Display |
TFT Smart Color Display with Backlight |
| Charger |
48V 2A Charger |
| Charging Time |
Approx. 8 Hours |
| Frame |
6061 Aluminum Alloy with Internal Battery |
| Fork |
Hydraulic Suspension Fork, 60mm Travel, Lockout |
| Rear Suspension |
None |
| Tires |
Kenda 26" × 4.0" Fat Tires |
| Rims |
Aluminum 26" |
| Drivetrain |
Shimano 7-Speed |
| Shifter |
Shimano RevoShift 7-Speed |
| Rear Derailleur |
Shimano ARDTY500D 7-Speed |
| Chain |
KMC 124 Link, 7-Speed |
| Brakes |
Hydraulic Disc Brakes with 180mm Rotors & Power Cut-Off |
| Headlight |
48V LED Headlight (75 LUX) |
| Taillight |
Rear Brake Light (12V 20 LUX) |
| Rear Rack |
Aluminum Alloy |
| Fenders |
Plastic 26" × 110mm |
| Net Weight |
82.67 lbs (37.5 kg) |
| Battery Weight |
8.82 lbs (4 kg) |
| Gross Weight |
100.53 lbs (45.6 kg) |
| Maximum Load Capacity |
300 lbs |
| Available Frames |
Step-Over, Step-Through |
| Available Colors |
Silver, Dark Gray |
What's Included
- Velowave Ranger 3.0 Electric Bike
- 48V 15Ah Battery
- 48V 2A Charger
- Front Light & Reflector Combo
- Pedals (Pair)
- Front Axle Skewer
- Spare Screws (2)
- Allen Wrench
- Open-End Wrenches (2)
- Instruction Manual
Why Choose This Product
The Velowave Ranger 3.0 combines a torque sensor, powerful rear hub motor, hydraulic suspension, and Shimano drivetrain to deliver responsive performance on paved roads and varied terrain. Its removable LG battery, fat tires, and integrated rear rack make it suitable for commuting, recreation, and outdoor adventures.
Perfect For
- Trail Riding
- Off-Road Riding
- Commuting
- Gravel Roads
- Camping
- Recreational Riding
- Snow Riding
- Sand Riding
Shipping Information
- Professionally packaged for secure transport.
- Fast shipping available.
- Free shipping available.
- Ships in protective packaging.
