Fat Bike Frame SN04
- Regular price
- Price: $1,018.00 USD
- Regular price
- Sale price
- Price: $1,018.00 USD
- Unit price
Notify me when this product is available:
Availability: Out Of Stock
Estimated Arrival: Between Feb 04 and Feb 09. United States - does not apply for Hawaii & Alaska
Free Shipping. All The Time.

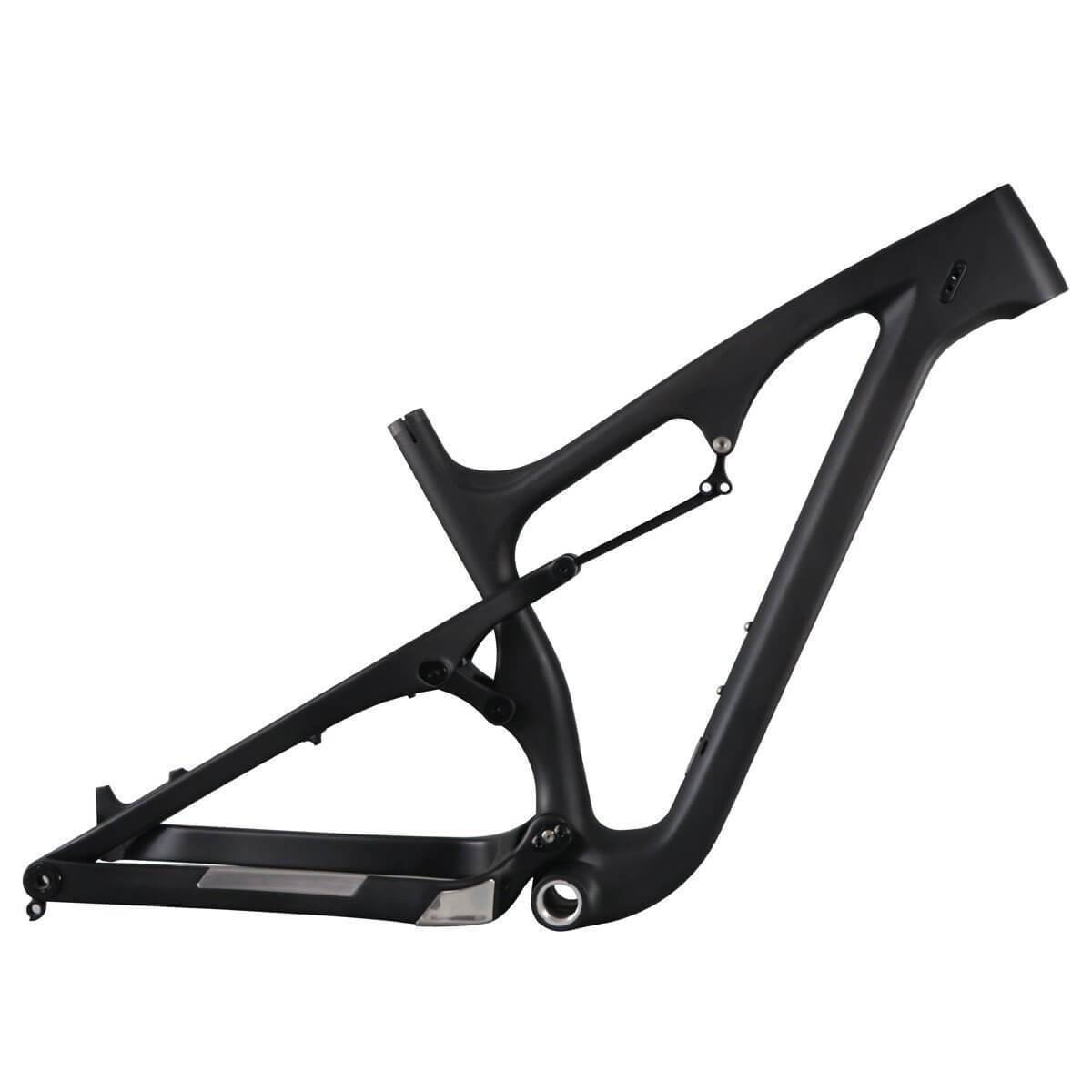

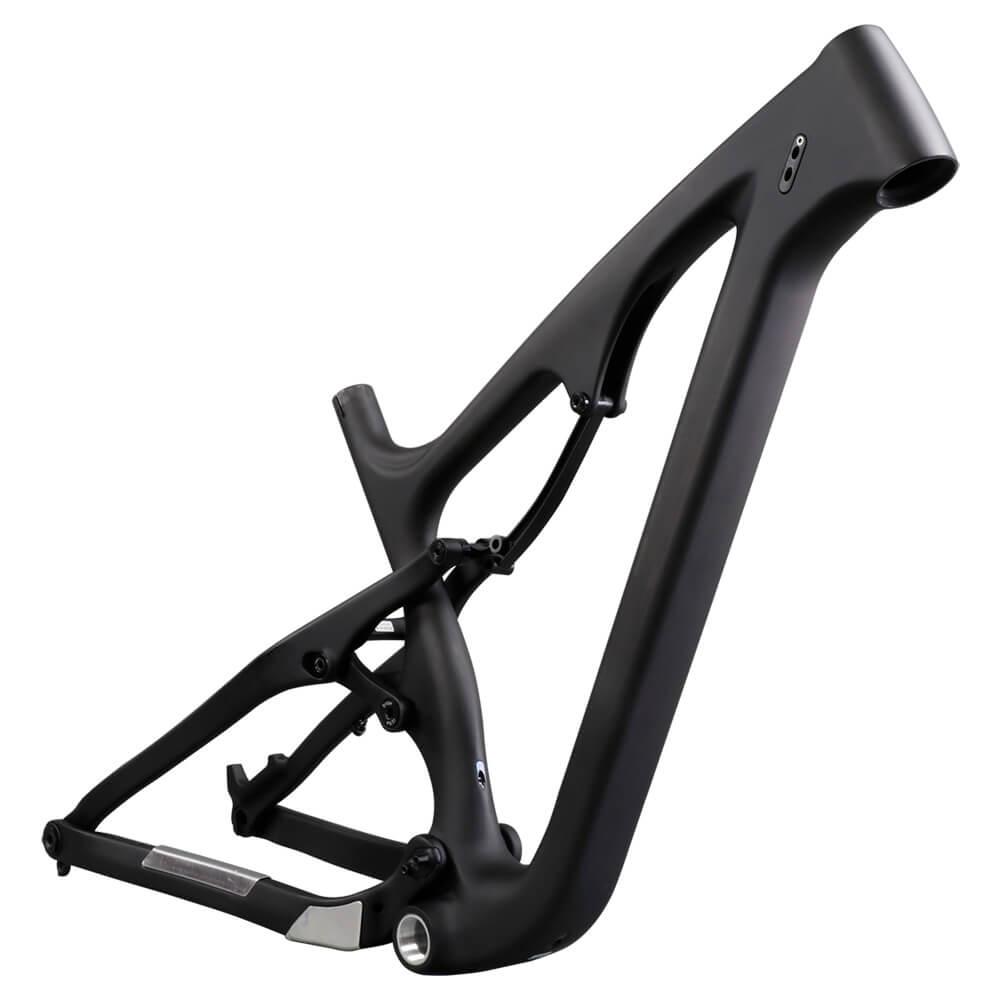

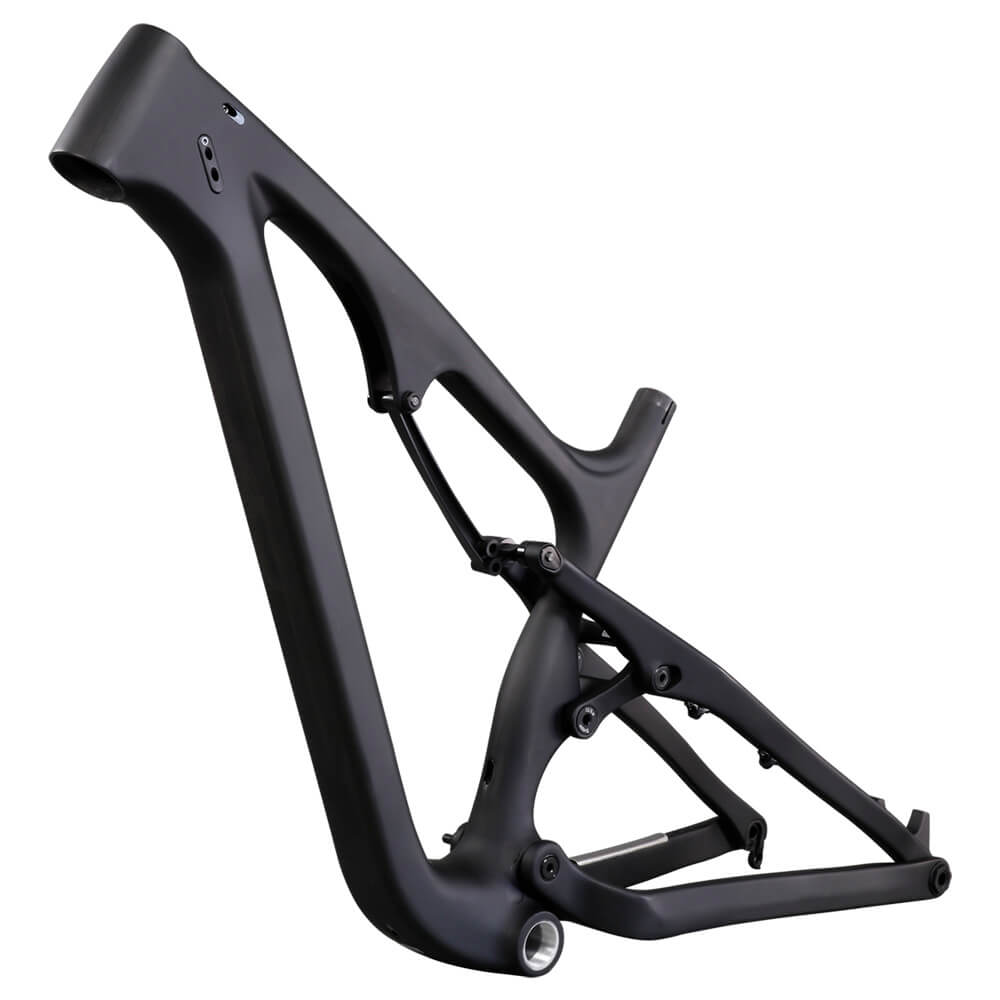

Sn04 is a Full suspension bike fram specially designed by ICAN Cycling for mountain bike.
In the current Full suspension bike frame market, SN04 is one of the most cost-effective bike frames, which has excellent characteristics that attract the interest of a large number of racer.
Have you been looking at all those fantastic bikepacking stories featuring people riding full suspension fat bikes and travelling the world? You wish to be able to go on one of those adventures but feel you could never afford it? Step forward the ICAN SN04 frame.
This frame is the answer to your dreams. It is just the same as those brand name full suspension fat bike frames but does not have an oversize brand name sticker on the downtube. Without that sticker, you will now be able to enter the luxury world of full suspension fat bikes and have enough change left to go on an adventure.
The SN04 frame is constructed from Toray T700 carbon fibre this allowed us to build you a stiff and light frame. The front end has a lovely taper headtube to make it easy to find a fork that fits. We recommend a Rock Shox Bluto at 120mm, and that will work perfectly with a Rock Shox Monarch XX (200 x 51mm) in the back.
With our 197mm symmetrical rear end, you can easily fit 4.8” tyres on a 100mm wide rim at the back. No surface can then not be crossed on this frame. While you are out trying to cross the previously untameable, we have made sure that the SN04 frame is fully internally routed to keep your cables working at their best.

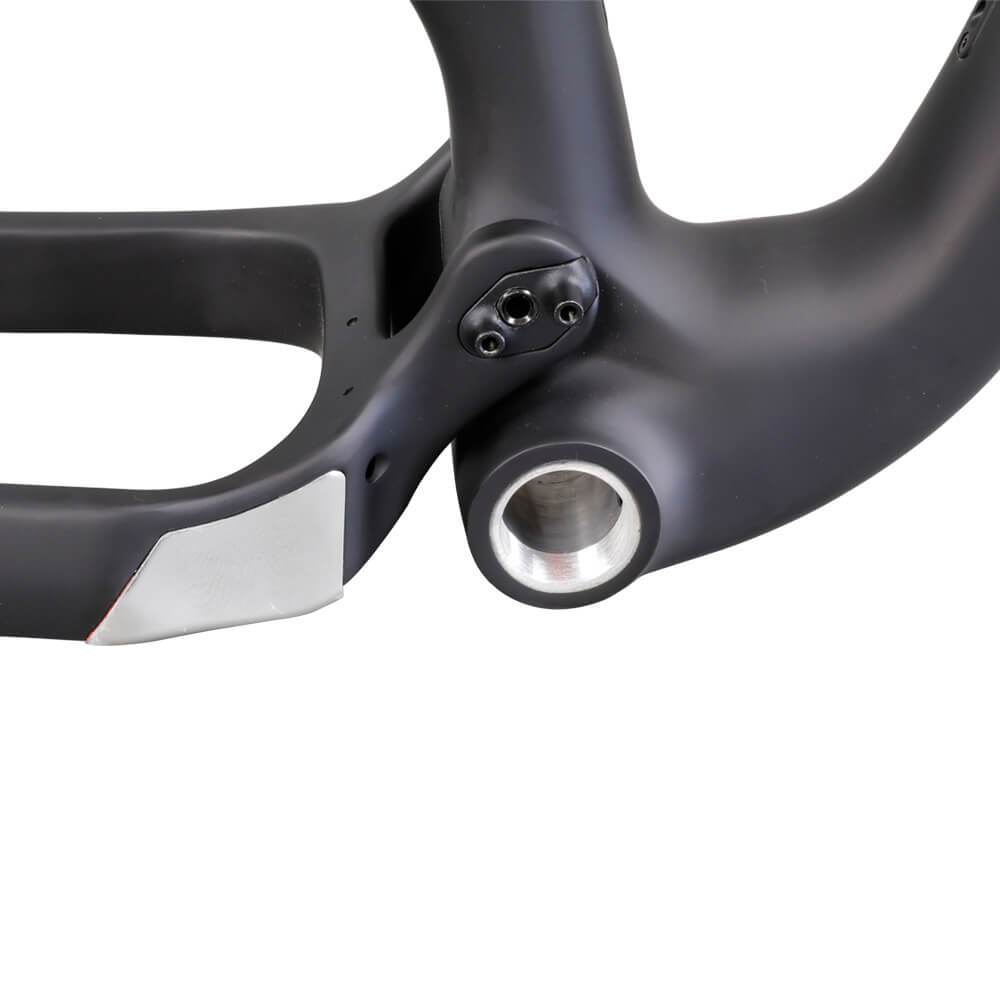

To allow this width of tyres, we have fitted a 120mm BSA bottom bracket, again to keep things reliable. Just above that, we have a removable direct front mount derailleur bracket meaning you can run a 2x drivetrain. If you want to run a 1x drivetrain, remove the bracket, and you have a beautiful clean frame.
If you want this wheelset fast and taxes free(taxes prepaid by ICAN), Then you can go to our overseas warehouse to buy it now.
1× & 2×Drivertrains Compatible
This frame is compatible with both 1×and 2× drivertrain setups. A removable
direct mount front derailleur bracket allows for a clean 1× build.
RockShox Bluto Suspension Fork Compatible
120mm travel. Tapered steerer tube. 150×15mm thru-axle hub spacing, 74mm standard post mount fork.

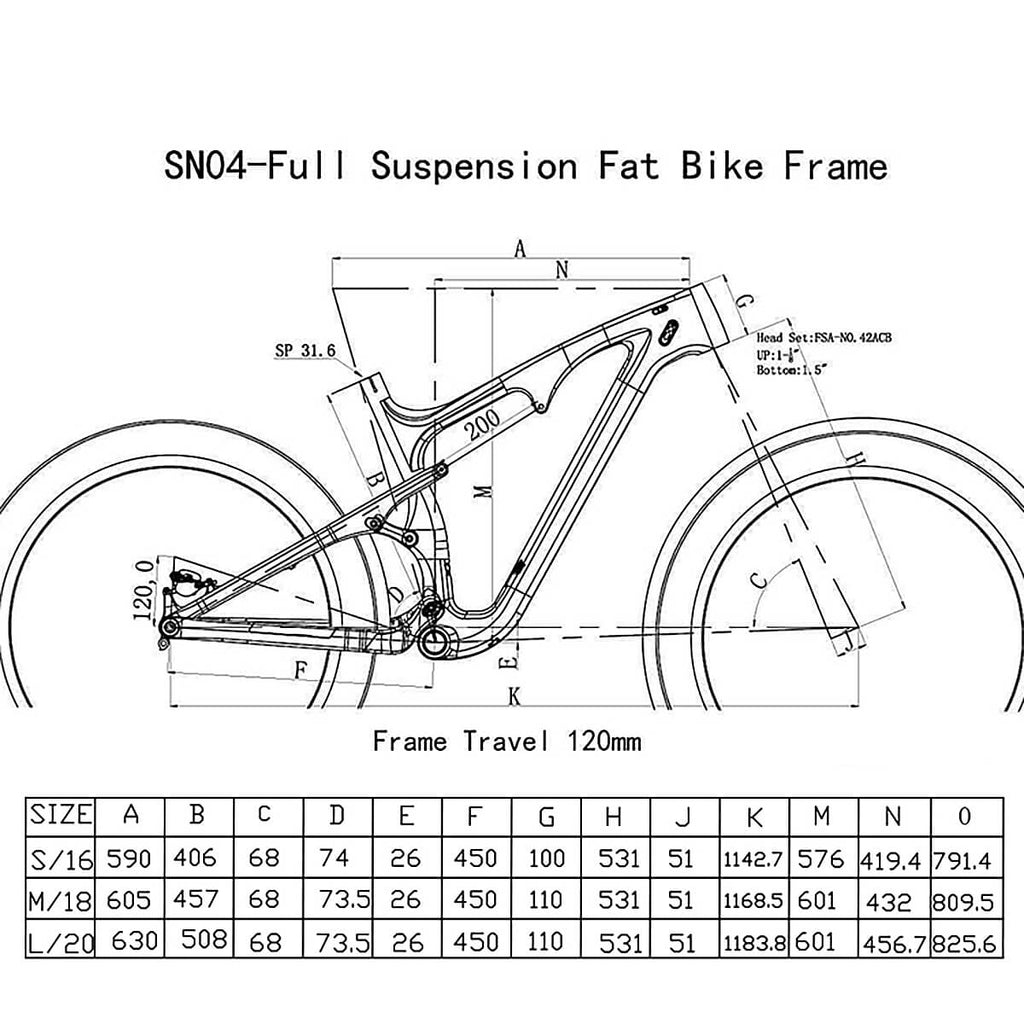

Frame Travel 120mm, Rear Shock 200mm Size
SN04 fat bike frame travel design as 120mm, use 200mm size rear travel, recommend Rockshox Manarch XX.200x51mm.
High-modulus Carbon Fiber Frame
This material offers improved stiffness, better vibration damping, excellent strength and weight savings compared to other materials.
This frame offers a 350g weight savings over the aluminum version.

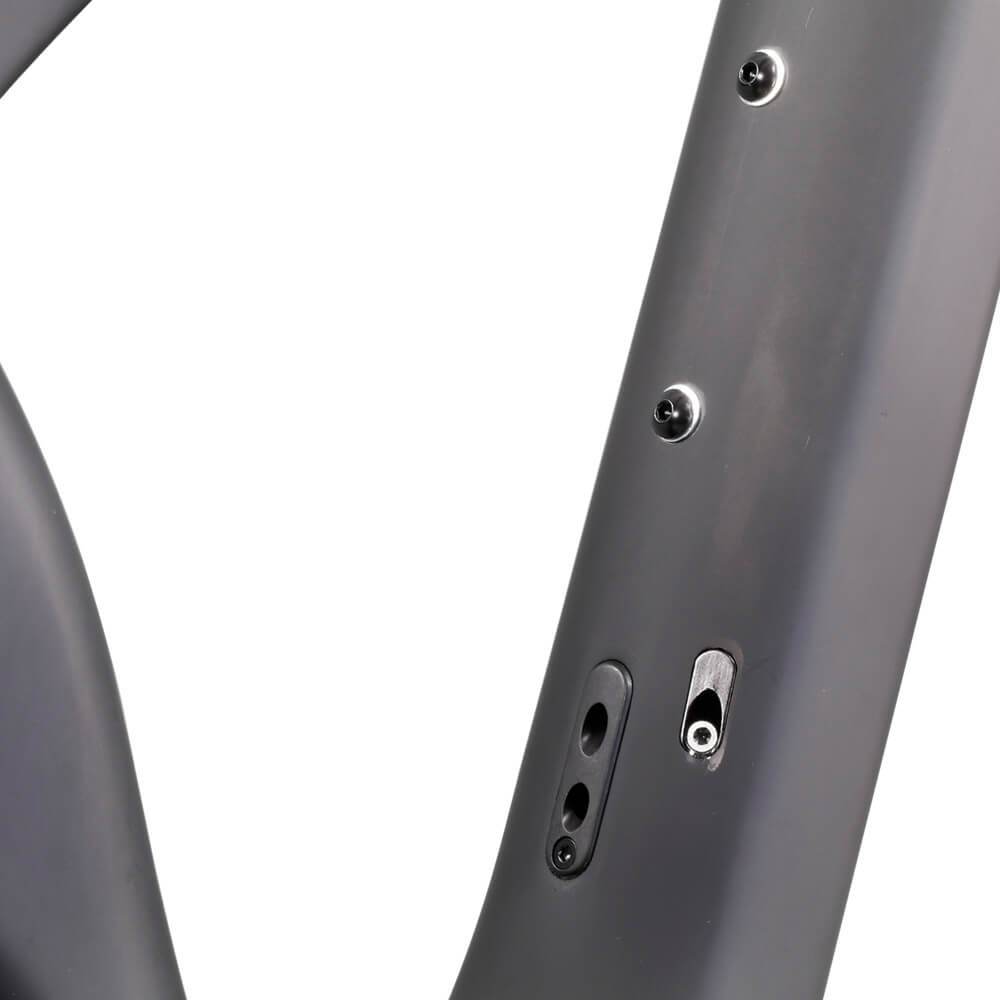

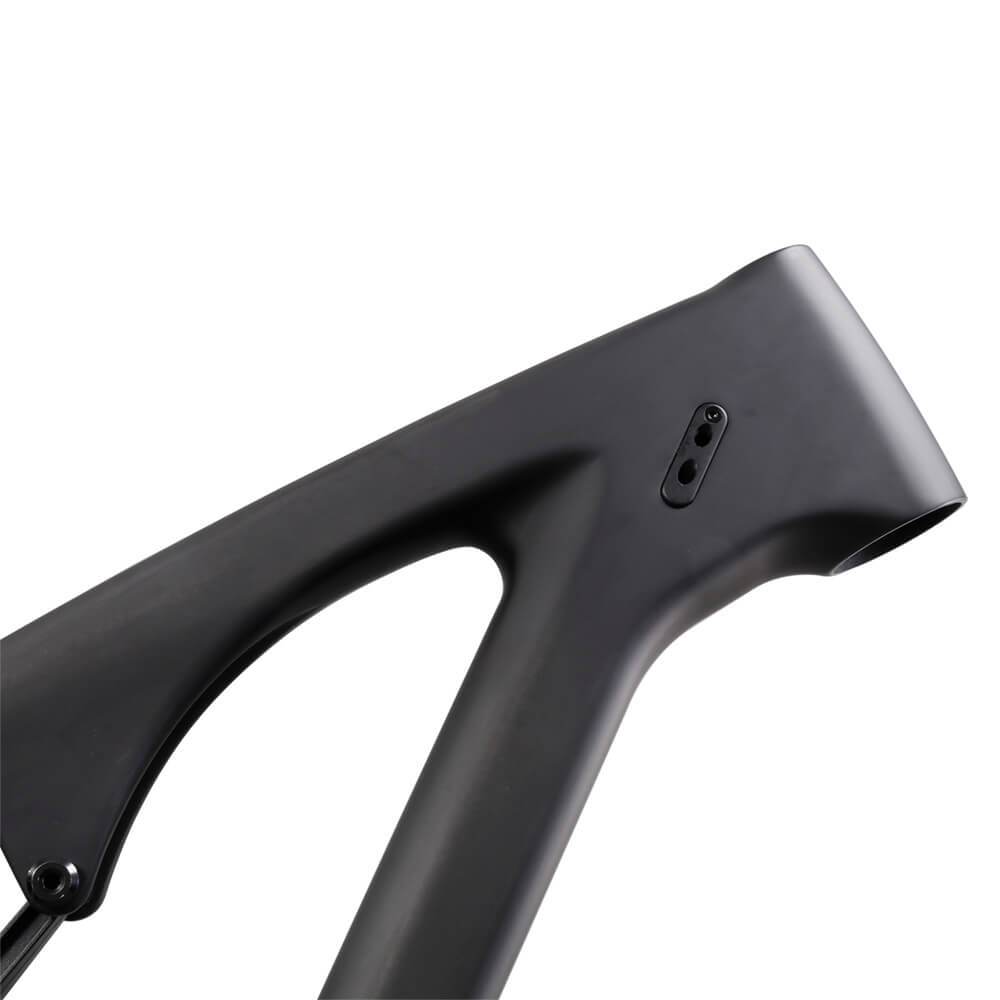

All Internal Cable Routing, Best Protection And Easy Maintenance
Frame design, hide the brake cable and shift cable inside the frame. This not only provides cables best protection and easy maintenance.
And reduce frame weight, maintaining a high quality and high standards
Chainstay Guard let the chain do not touch the frame by accident.

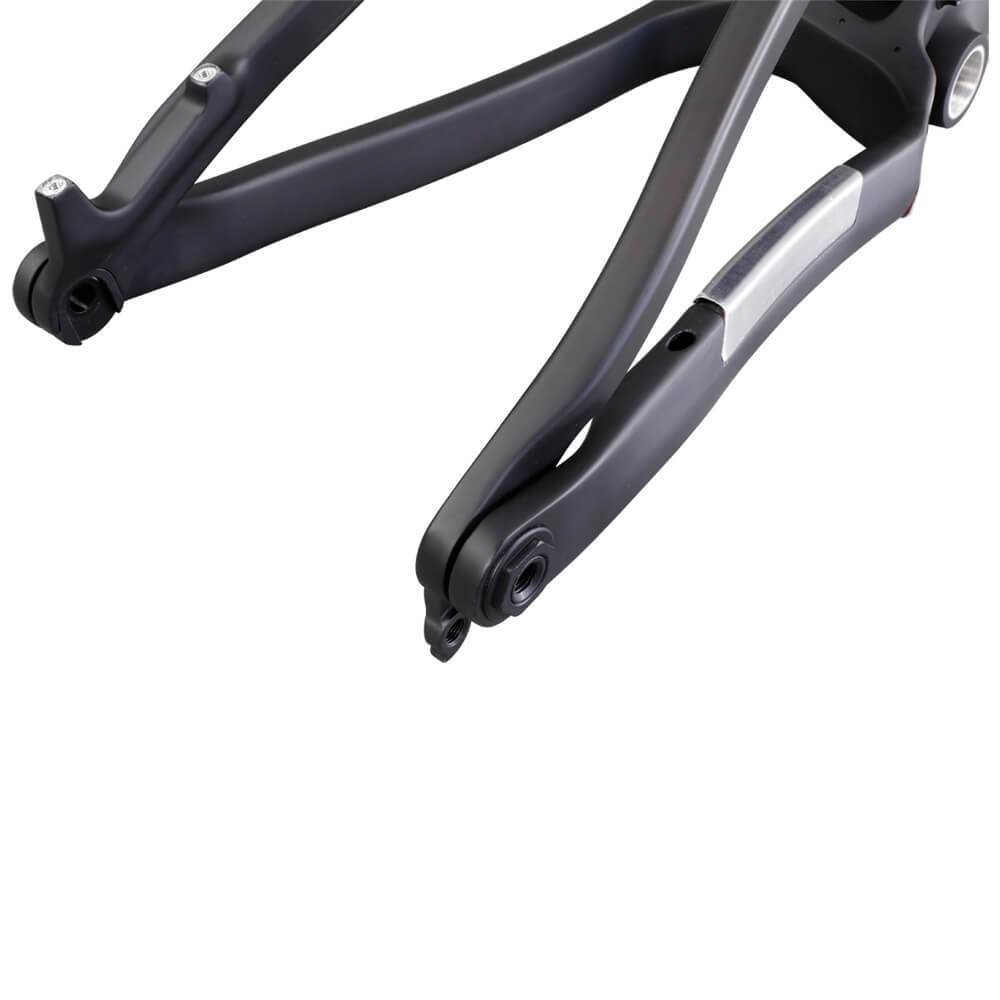

12x197mm Symmetrical Rear Spacing
The modern standard for mountain bikes increases front-end frame and fork stiffness without adding significant weight.
|Type||Fat bike frame 26er|
|Material||100% carbon fiber Toray T700|
|Weave||UD Matt/Blue painting UD Glossy|
|Seat clamp Size||37mm|
|Frame Size||16/18/20 inch|
|Headtube||Top 1-1/8",down 1- 1/2"|
|BB||BSA(120mm BB Shell)|
|Disc Rotor Size||160mm(front and rear)|
|Wheel & Tire Options||
26×3.8—4.8” on up to a 100mm rim
29×2.25—3” (including 29+)
1x seatpost Clamp
1x rear thru axle
